Ground Screw for Solar Panel Mounting Structure

  • Ground Screw for Solar Panel Mounting Structure
  • Ground Screw for Solar Panel Mounting Structure
  • Ground Screw for Solar Panel Mounting Structure
  • Ground Screw for Solar Panel Mounting Structure

Ground Screw for Solar Panel Mounting Structure

    Unit Price: 13.5~9.2 USD
    Min. Order: 1000 Piece/Pieces
    Packaging: steel pallet
    Productivity: 30000pcs/month
    Transportation: Ocean,Land
    Place of Origin: Hebei China
    Supply Ability: 1000pcs/day
    Certificate: GB DIN EN ISO1461-1999
    HS Code: 73269090
    Port: Tianjin

Basic Info

Model No.: LD-F

Product Description

We have many types of Ground Screw,N type ground screw,F type ground screw,U type ground screw,V type ground screw and so on.The different types of Ground Screws suit any construction you could ever imagine.Our team will provide the best solution for your needs.

F series Ground Screw with different shape flange: round flange,hexagon flange, square flange & with or without nut and reinforced washer, usually with 3 to 6 nut, and 2 pieces reinforced washer to reinforce strength. Mainly for Solar Panel Mounting Structure.some countries called that as Ground Anchor Screw.

Main specifications and parameters of Ground Pile as follow:

Material of Ground Screw S 235 JR
Length of Ground Screw 300-6000 mm
Diameter of pipe 48 mm,60 mm,68 mm,76 mm,89 mm,114 mm or according to clients' request.
Thickness of pipe 2.5 mm,2.75 mm,3.0 mm,3.75 mm,4.0 mm
Flange size 160*8 mm,200*8 mm,220*8 mm
Nut M 10,M 12,M 14,M 16 or according to clients' request.


Continuous welding with auto welding machine .

Surface treatment of Ground Screw Anchor:High dip galvanized, According to DIN EN ISO 1461-1999,thickness of coating zinc: more than 80 micron.

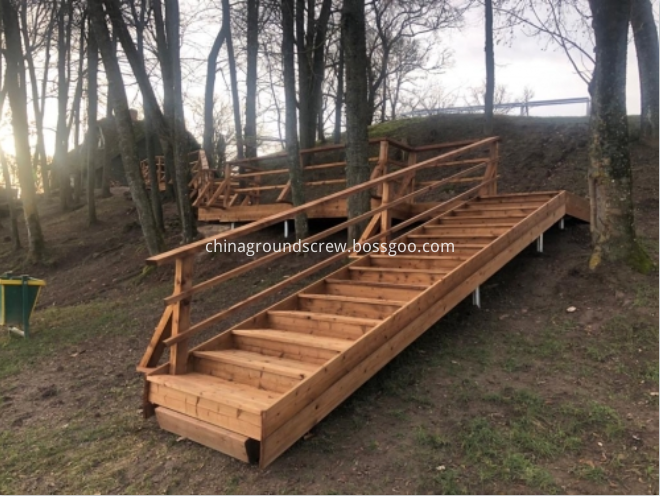

Range of application:Solar energy system, garden or farm fencing, timber construction, simple house construction, advertising board and banner, traffic signature, lighting pole, flag pole, event structure, sheds and containers &.

Advantage:easy install by spiral piling machine, no digging, no concrete, no waiting, much convenient, cost effective,save time, no need concrete foundation, suitable for different soil.

Production Chart :


GROUND SCREW PIPEHDG ground screw HDG GROUND SCREWhigh dip galvanized ground screwground screw anchor hdg ground anchorground screw anchor ground screw for solar energy systemsolar energy ground screwground screw packing hdg ground screw screw 08

screw 012

BAODING JIMAOTONG IMPORT AND EXPORT CO., LTD



As a professional manufacturer of metal products and cast iron products ,we make metal products ,such as Ground screw ,Ground screw pile ,Screw pile ,Helix ground screw, Helix screw pile ,Helix anchor ,Ground anchor , Anchor spike , Steel picket ,stainless steel Screw bolt nut ,hot dip galvanized Screw bolt nut washer ,fence post ,and other metal products . We started making ground screw from 2002 till now ,we have factories to make Ground screw ,Ground screw pile, Screw pile ,Helix screw pile , Ground anchor , Screw bolt nut ,Anchor spike , steel pickets ,we also have cooperated factories to make wood burning stoves, casters ,and other metal products and cast iron products , all of the products exported to USA,Canada , Australia , Sweden , Russia , Japan , South Korea ,Thailand , Belgium , Spain and other countries and markets with high quality , competitive price and fastest delivery .
