1000w Handheld Fiber Laser Hand Held Machine

  • 1000w Handheld Fiber Laser Hand Held Machine
  • 1000w Handheld Fiber Laser Hand Held Machine
  • 1000w Handheld Fiber Laser Hand Held Machine
  • 1000w Handheld Fiber Laser Hand Held Machine

1000w Handheld Fiber Laser Hand Held Machine

    Unit Price: 8550~14950 USD
    Min. Order: 1 Set/Sets
    Packaging: Yueda brand 1000w 1500w 2000w hand-held fiber laser welding machine as usual use wooden box packages.
    Supply Ability: 20000 Set/Sets per Year
    Port: Qingdao,Shanghai,Tianjin

Product Description

Product Description
Specification

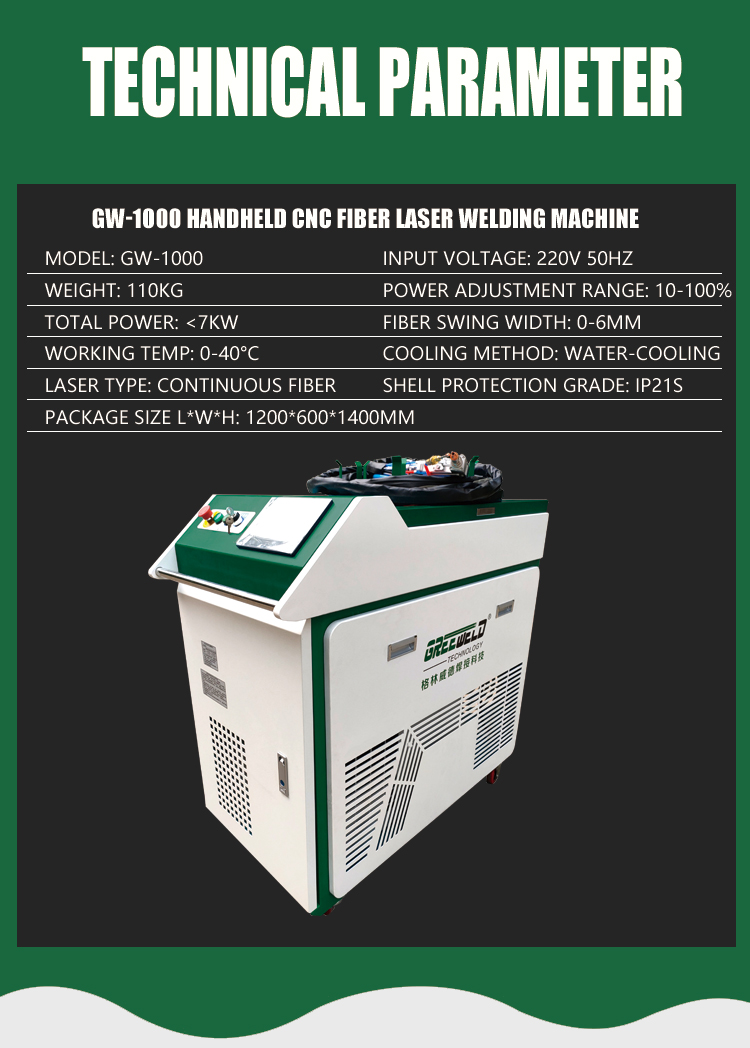

Yueda Hand-Held Fiber Laser Welding Machine Technical Parameter
Model
GW-1000
GW-1500
GW-2000
Rated output power
1000W
1500W
2000W
Rated output voltage
Single phase 220V±10%; 50Hz
Total power consumption
<7kw
Laser type
Continuous fiber laser
Power adjustment range
10-100%
Laser center wavelength
1080±3nm
Laser output mode
Continuous/modulation
Indicating system
Red light
Optical fiber Dia.
50um
Welding torch fiber length
10m(Can customized length)
Optical fiber swing width
0-6mm
Cooling mode
Water cooling
Operating ambient temperature
0-40℃
Operating ambient humidity
<75%
Protection class
IP21S
Machine dimension
1200mm×600mm×1400mm
Weight
110kg
Yueda Hand-Held Fiber Laser Welding Machine Technical Configuration List
Name
QTY
Remarks
1: Fiber Laser
1set
Fiber continuous laser
2: Cold Water System
1set
Cooling laser, laser welding torch
3: Hand-Held Laser Welding Torch
1set
The standard fiber cable length is 10m
4: Wire Feeding Mechanism
1set
Continuous wire feeding and pulse wire feeding are optional
5: Control System
1set
Touch screen
1set
Nozzle, Protective lens
Packing & Delivery
Yueda hand held laser welding machine 1000w 1500w 2000w as usual we use wooden box package, the delivery time around 5days thins we received the balance.

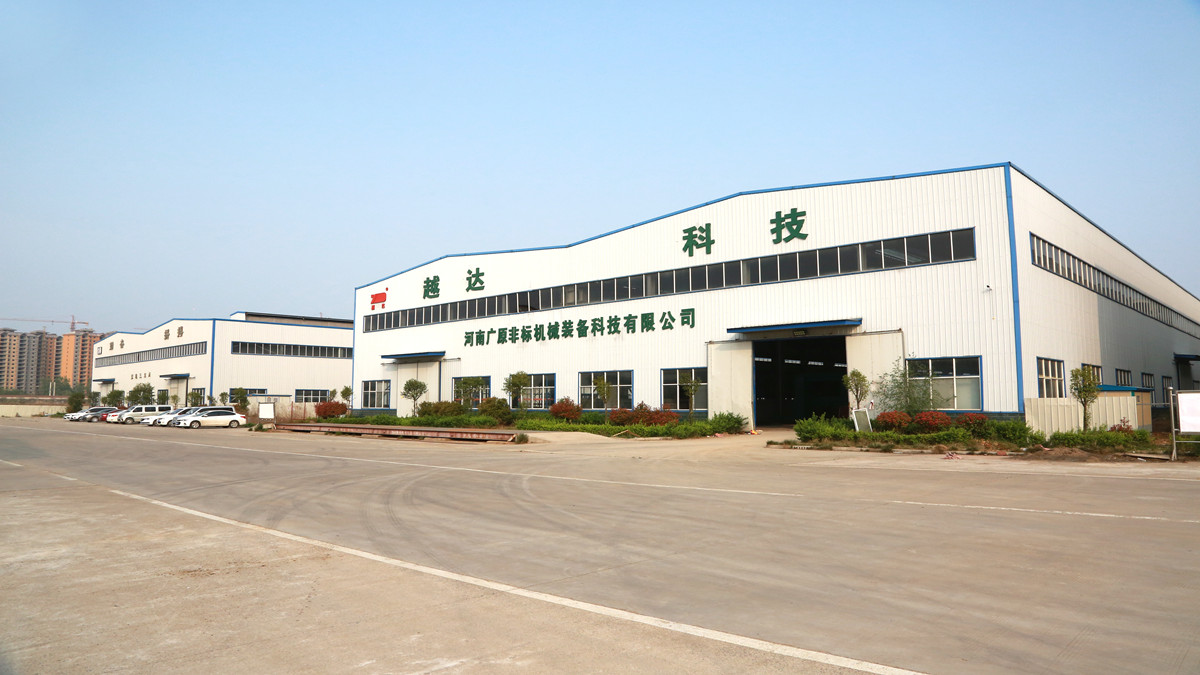

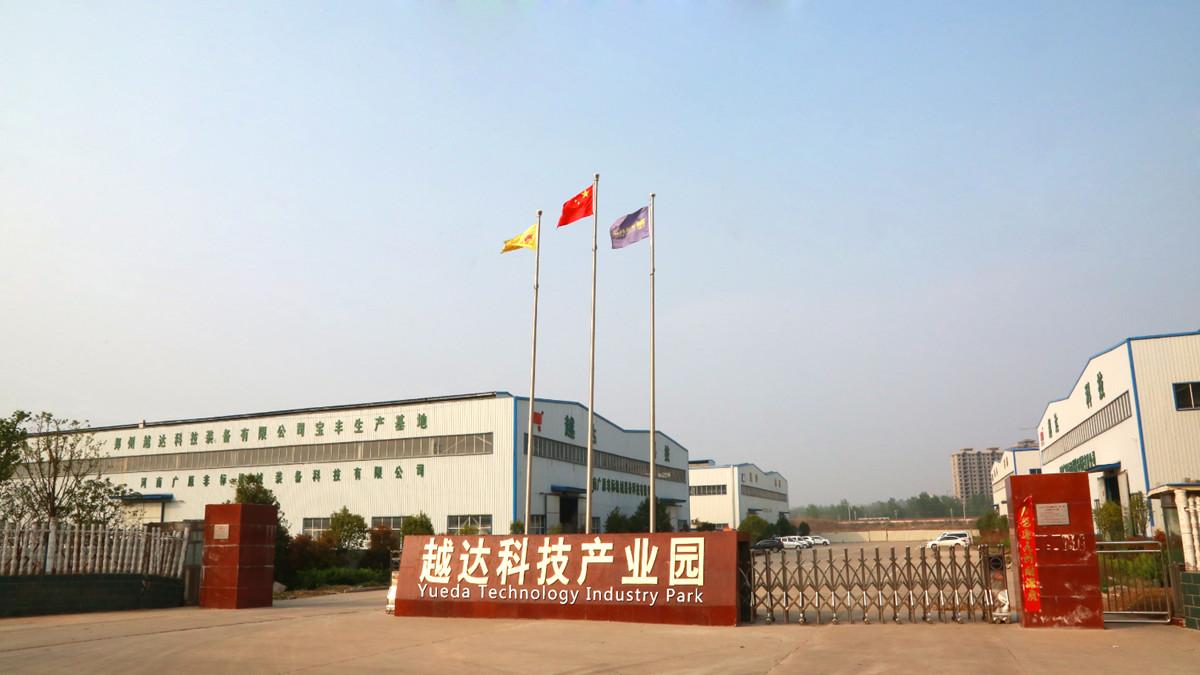

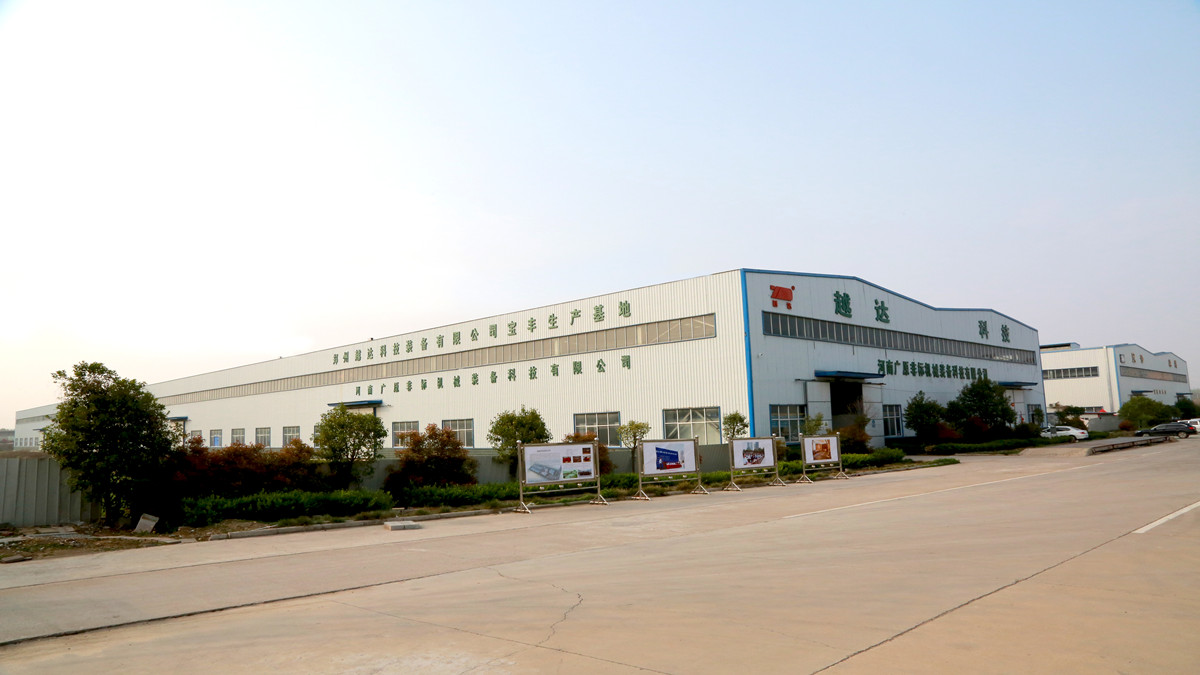

Company Profile
Zhengzhou Yueda Technology Equipment Co.,Ltd(former name is Zhengzhou Yueda Automatic Welding Equipment Co.,Ltd) which is located in Zhengzhou city,Henan province. As a high-tech enterprise with 20 years' history and specializing in the design and manufacture of welding&cutting automation equipments our company is committed to provide clients at home and abroad with one- stop automatic welding and cutting solutions. Our main products: welding column&boom(welding manipulator) series,welding rotator series,welding positioner series,welding robot, automatic cutting machine series, electric tower rod welding machine series,surfacing welding machine series, wind tower production line, special tanker production line, grinding machine series, painting production line and robot system integration. In order to provide outstanding service to our clients, we continue to introduce talents, increase equipment technology R&D investment and set up professional technical teams.
FAQ
Q1 :Our workers can't operate sheet metal laser metal cutting machine , how to train the staff?
Please do not worry, our company will provide you with 24h anytime network technical guidance and support, you can contact us
through phone, video and SMS

Q2 : I don’t know which metal laser fiber machine for sheet metal is suitable for me ?
A:Please tell us your materials type? material size? material thickness range?Then we can recommend the most suitable model metal
laser cutting machine to you.

Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
We can send you real-time photos and videos of the machines, or you can also contact us by video, and we can video tour the
conditions of the machines in the factory.


Q4 :What should I do when i have problem during use?
A:If have any problem during use,you need our technician to judge the problem else where will be solved by us.
We can provide team viewer/Email/Phone with cam till all of your problems finished.We can also provide online service if you need.
